基于Abp vNext开发Web应用程序系列 - 增删改

在系列教程中，我们会构建一个基于ABP的Web应用程序，用于管理书籍及其作者列表

使用到的技术：

  • Entity Framework Core
  • Angular

本教程分为以下部分：

创建新书籍

本节我们完成一个基本的增删改操作

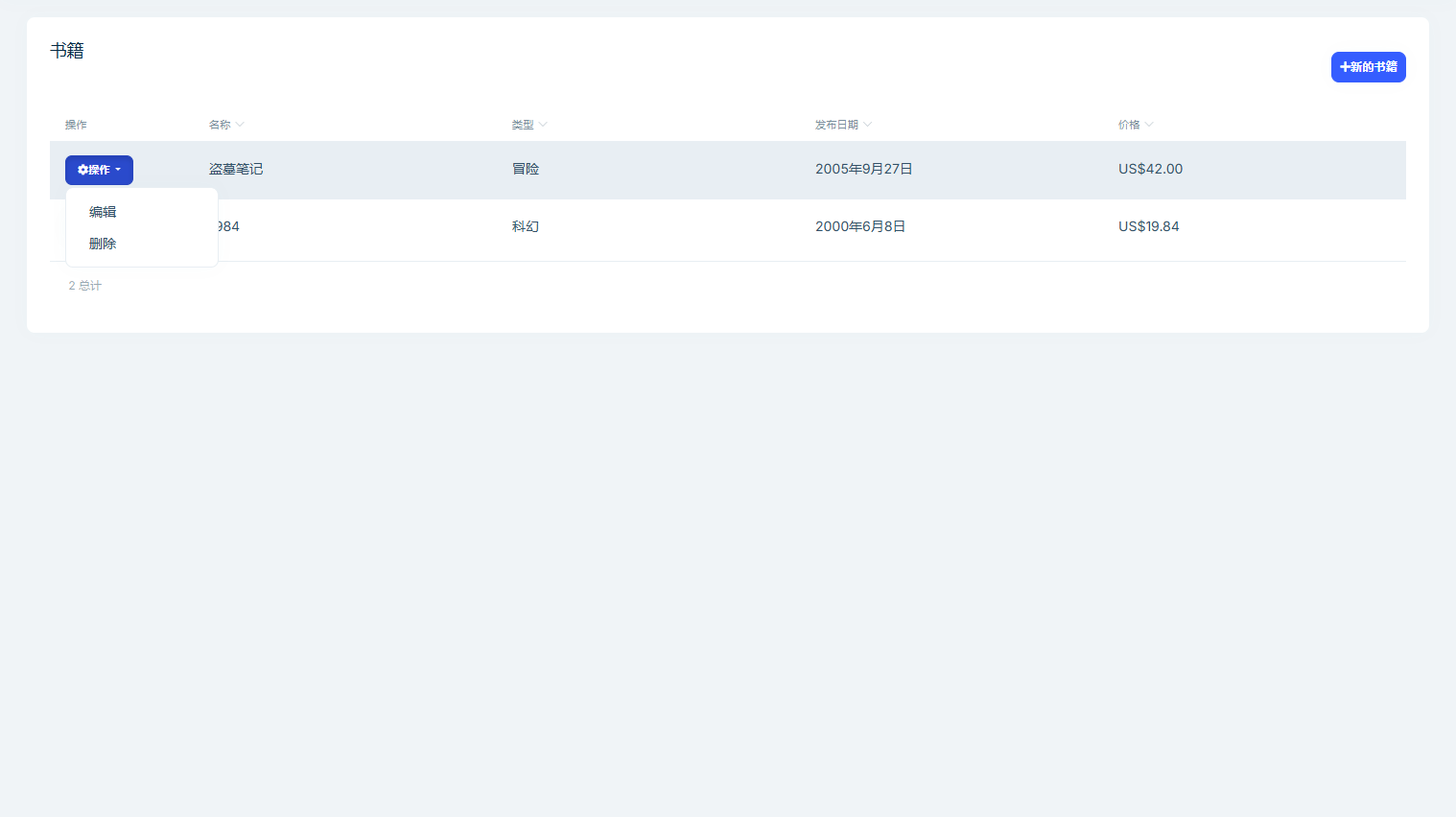

book manager

BookComponent

在/src/app/book/book.component.ts中新增以下内容：

  • isModalOpen属性：用于判断模态框的打开关闭
  • createBook方法：新增按钮调用方法，打开弹窗
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
import { ListService, PagedResultDto } from '@abp/ng.core';
import { Component, OnInit } from '@angular/core';
import { BookService, BookDto} from '@proxy/books';

@Component({
  selector: 'app-book',
  templateUrl: './book.component.html',
  styleUrls: ['./book.component.scss'],
  providers: [ListService],
})
export class BookComponent implements OnInit {
  book = { items: [], totalCount: 0 } as PagedResultDto<BookDto>;

  // 是否打开弹窗
  isModalOpen = false;

  constructor(
    public readonly list: ListService,
    private bookService: BookService,
  ) {}

  ngOnInit() {
    const bookStreamCreator = (query) => this.bookService.getList(query);

    this.list.hookToQuery(bookStreamCreator).subscribe((response) => {
      this.book = response;
    });
  }

  /**
   * 创建图书
   */
  createBook() {
    this.isModalOpen = true;
  }
}

打开 /src/app/book/book.component.html

  • 新增创建按钮
  • 新增模态框
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
<div class="card">
  <div class="card-header">
    <div class="row">
      <div class="col col-md-6">
        <h5 class="card-title">{{ '::Menu:Books' | abpLocalization }}</h5>
      </div>
      <div class="text-end col col-md-6">
        <!-- 新增按钮在这里！！！ -->
        <div class="text-lg-end pt-2">
          <button id="create" class="btn btn-primary" type="button" (click)="createBook()">
            <i class="fa fa-plus mr-1"></i>
            <span>{{ "::NewBook" | abpLocalization }}</span>
          </button>
        </div>

      </div>
    </div>
  </div>
  <div class="card-body">
    <!-- 表格 -->
  </div>
</div>

<!-- 模态框组件 -->
<abp-modal [(visible)]="isModalOpen">
  <ng-template #abpHeader>
    <h3>{{ '::NewBook' | abpLocalization }}</h3>
  </ng-template>

  <ng-template #abpBody> </ng-template>

  <ng-template #abpFooter>
    <button type="button" class="btn btn-secondary" abpClose>
      {{ '::Close' | abpLocalization }}
    </button>
  </ng-template>
</abp-modal>

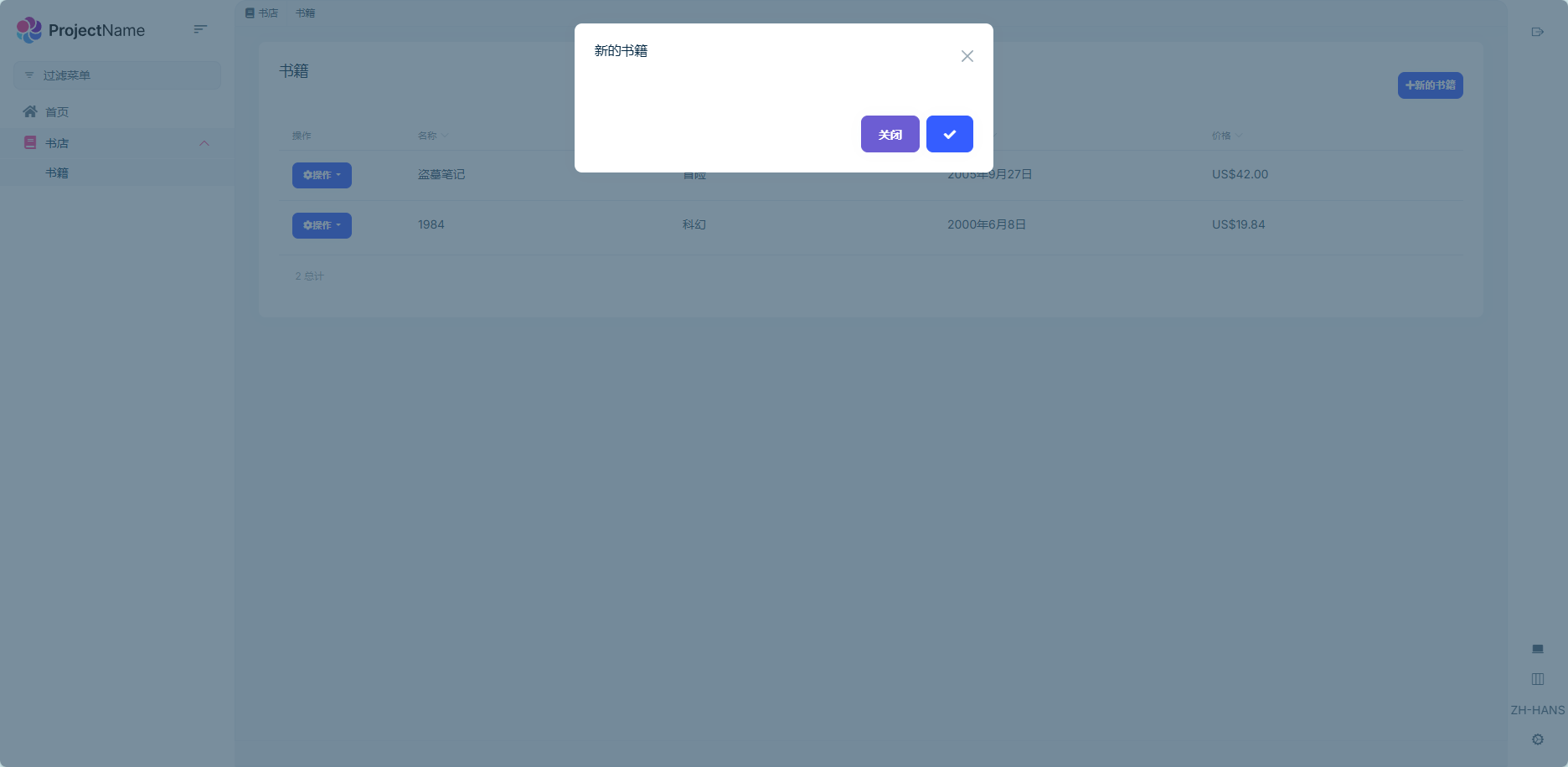

这个时候，点击新增按钮弹窗如下：

modal

添加弹窗表单

打开 /src/app/book/book.component.ts 新增以下内容：

  • 从@angular/forms导入 FormGroup、 FormBuilder、Validators
  • 添加 form: FormGroup 变量
  • 添加 bookTypes 属性作为 BookType 枚举成员列表，在表单图书类型选项中使用
  • 注入FormBuilder 到构造函数
  • 添加 buildForm 方法到文件末尾，在 createBook 方法调用 buildForm() 方法初始化
  • 添加save 方法，用于保存表单填写数据到后台（发起请求）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
import { ListService, PagedResultDto } from '@abp/ng.core';
import { Component, OnInit } from '@angular/core';
import { BookService, BookDto, bookTypeOptions } from '@proxy/books'; // 导入 bookTypeOptions
import { FormGroup, FormBuilder, Validators } from '@angular/forms'; // 导入

@Component({
  selector: 'app-book',
  templateUrl: './book.component.html',
  styleUrls: ['./book.component.scss'],
  providers: [ListService],
})
export class BookComponent implements OnInit {
  book = { items: [], totalCount: 0 } as PagedResultDto<BookDto>;

  form: FormGroup; // 定义form

  // 图书类型选项
  bookTypes = bookTypeOptions;

  isModalOpen = false;

  constructor(
    public readonly list: ListService,
    private bookService: BookService,
    private fb: FormBuilder // 注入 FormBuilder
  ) {}

  ngOnInit() {
    const bookStreamCreator = (query) => this.bookService.getList(query);

    this.list.hookToQuery(bookStreamCreator).subscribe((response) => {
      this.book = response;
    });
  }

  createBook() {
    this.buildForm(); // 打开模态框 初始化表单
    this.isModalOpen = true;
  }

  // 初始化表单
  buildForm() {
    this.form = this.fb.group({
      name: ['', Validators.required],
      type: [null, Validators.required],
      publishDate: [null, Validators.required],
      price: [null, Validators.required],
    });
  }

  // 新增保存方法
  save() {
    if (this.form.invalid) {
      return;
    }

    this.bookService.create(this.form.value).subscribe(() => {
      this.isModalOpen = false;
      this.form.reset();
      this.list.get();
    });
  }
}

打开 /src/app/book/book.component.html新增以下内容：

  • 表单
  • 操作按钮
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
<abp-modal [(visible)]="isModalOpen">
  <ng-template #abpHeader>
    <h3>{{ (selectedBook.id ? '::Edit' : '::NewBook' ) | abpLocalization }}</h3>
</ng-template>

  <ng-template #abpBody>
    <form [formGroup]="form" (ngSubmit)="save()">
      <div class="form-group">
        <label for="book-name">Name</label><span> * </span>
        <input type="text" id="book-name" class="form-control" formControlName="name" autofocus />
      </div>

      <div class="form-group">
        <label for="book-price">Price</label><span> * </span>
        <input type="number" id="book-price" class="form-control" formControlName="price" />
      </div>

      <div class="form-group">
        <label for="book-type">Type</label><span> * </span>
        <select class="form-control" id="book-type" formControlName="type">
          <option [ngValue]="null">Select a book type</option>
          <option [ngValue]="type.value" *ngFor="let type of bookTypes">{{ type.key }}</option>
        </select>
      </div>

      <div class="form-group">
        <label>Publish date</label><span> * </span>
        <input
          #datepicker="ngbDatepicker"
          class="form-control"
          name="datepicker"
          formControlName="publishDate"
          ngbDatepicker
          (click)="datepicker.toggle()"
        />
      </div>
    </form>
  </ng-template>

  <ng-template #abpFooter>
    <button type="button" class="btn btn-secondary" abpClose>
      {{ '::Close' | abpLocalization }}
    </button>

    <button class="btn btn-primary" (click)="save()" [disabled]="form.invalid">
      <i class="fa fa-check mr-1"></i>
      {{ '::Save' | abpLocalization }}
    </button>
  </ng-template>
</abp-modal>

Datepicker

在这个组件中使用了NgBootstrap datepicker，需要添加与此组件相关的依赖项，打开 /src/app/book/book.module.ts 新增以下内容：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
import { NgModule } from '@angular/core';
import { SharedModule } from '../shared/shared.module';
import { BookRoutingModule } from './book-routing.module';
import { BookComponent } from './book.component';
import { NgbDatepickerModule } from '@ng-bootstrap/ng-bootstrap'; // 导入

@NgModule({
  declarations: [BookComponent],
  imports: [
    BookRoutingModule,
    SharedModule,
    NgbDatepickerModule, // 注册
  ]
})
export class BookModule { }

在 /src/app/book/book.component.ts 中使用NgbDateAdapter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
import { ListService, PagedResultDto } from '@abp/ng.core';
import { Component, OnInit } from '@angular/core';
import { BookService, BookDto, bookTypeOptions } from '@proxy/books';
import { FormGroup, FormBuilder, Validators } from '@angular/forms';

// 导入
import { NgbDateNativeAdapter, NgbDateAdapter } from '@ng-bootstrap/ng-bootstrap';

@Component({
  selector: 'app-book',
  templateUrl: './book.component.html',
  styleUrls: ['./book.component.scss'],
  providers: [
    ListService,
    { provide: NgbDateAdapter, useClass: NgbDateNativeAdapter } // 提供器
  ],
})

打开弹窗

弹窗

更新书籍

打开 /src/app/book/book.component.ts 新增以下内容：

  • 声明类型为 BookDto 的 selectedBook 变量，用于存储获取到的Book对象
  • 添加了editBook 方法，根据选择的书籍 Id 设置 selectedBook 对象
  • 替换 buildForm 方法使用 selectedBook 数据初始化表单
  • 替换 createBook 方法，设置 selectedBook 为空
  • 修改 save 方法，同时处理新增和更新操作
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
import { ListService, PagedResultDto } from '@abp/ng.core';
import { Component, OnInit } from '@angular/core';
import { BookService, BookDto, bookTypeOptions } from '@proxy/books';
import { FormGroup, FormBuilder, Validators } from '@angular/forms';
import { NgbDateNativeAdapter, NgbDateAdapter } from '@ng-bootstrap/ng-bootstrap';

@Component({
  selector: 'app-book',
  templateUrl: './book.component.html',
  styleUrls: ['./book.component.scss'],
  providers: [ListService, { provide: NgbDateAdapter, useClass: NgbDateNativeAdapter }],
})
export class BookComponent implements OnInit {
  book = { items: [], totalCount: 0 } as PagedResultDto<BookDto>;

  selectedBook = {} as BookDto; // 定义 selectedBook

  form: FormGroup;

  bookTypes = bookTypeOptions;

  isModalOpen = false;

  constructor(
    public readonly list: ListService,
    private bookService: BookService,
    private fb: FormBuilder
  ) {}

  ngOnInit() {
    const bookStreamCreator = (query) => this.bookService.getList(query);

    this.list.hookToQuery(bookStreamCreator).subscribe((response) => {
      this.book = response;
    });
  }

  createBook() {
    this.selectedBook = {} as BookDto; // 创建时将selectedBook置空
    this.buildForm();
    this.isModalOpen = true;
  }

  // 编辑书籍根据选择的Id查询Book信息
  editBook(id: string) {
    this.bookService.get(id).subscribe((book) => {
      this.selectedBook = book;
      this.buildForm();
      this.isModalOpen = true;
    });
  }

  buildForm() {
    // 判断selectedBook是否有值，区分是否编辑或新增
    this.form = this.fb.group({
      name: [this.selectedBook.name || '', Validators.required],
      type: [this.selectedBook.type || null, Validators.required],
      publishDate: [
        this.selectedBook.publishDate ? new Date(this.selectedBook.publishDate) : null,
        Validators.required,
      ],
      price: [this.selectedBook.price || null, Validators.required],
    });
  }

  // 保存
  save() {
    if (this.form.invalid) {
      return;
    }

    // 判断selectedBook.id是否有值
    // true:更新
    // false:新增
    const request = this.selectedBook.id
      ? this.bookService.update(this.selectedBook.id, this.form.value)
      : this.bookService.create(this.form.value);

    request.subscribe(() => {
      this.isModalOpen = false;
      this.form.reset();
      this.list.get();
    });
  }
}

添加表格操作按钮

打开 /src/app/book/book.component.html 在 ngx-datatable 第一列添加 ngx-datatable-column 定义:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
<ngx-datatable-column
  [name]="'::Actions' | abpLocalization"
  [maxWidth]="150"
  [sortable]="false"
>
  <ng-template let-row="row" ngx-datatable-cell-template>
    <div ngbDropdown container="body" class="d-inline-block">
      <button
        class="btn btn-primary btn-sm dropdown-toggle"
        data-toggle="dropdown"
        aria-haspopup="true"
        ngbDropdownToggle
      >
        <i class="fa fa-cog mr-1"></i>{{ '::Actions' | abpLocalization }}
      </button>
      <div ngbDropdownMenu>
        <button ngbDropdownItem (click)="editBook(row.id)">
          {{ '::Edit' | abpLocalization }}
        </button>
      </div>
    </div>
  </ng-template>
</ngx-datatable-column>

在表格的第一列添加了一个 Actions 下拉菜单，如下图所示：

action

同时如下所示更改 ng-template #abpHeader 部分:

  • 根据是否有选中的值判断弹窗展示文本
1
2
3
<ng-template #abpHeader>
    <h3>{{ (selectedBook.id ? '::Edit' : '::NewBook' ) | abpLocalization }}</h3>
</ng-template>

删除书籍

打开 /src/app/book/book.component.ts 注入 ConfirmationService

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// ...

// 新增导入
import { ConfirmationService, Confirmation } from '@abp/ng.theme.shared';

constructor(
  public readonly list: ListService,
  private bookService: BookService,
  private fb: FormBuilder,
  private confirmation: ConfirmationService // 注入
) {}

// 新增删除方法
delete(id: string) {
  this.confirmation.warn('::AreYouSureToDelete', '::AreYouSure').subscribe((status) => {
    if (status === Confirmation.Status.confirm) {
      this.bookService.delete(id).subscribe(() => this.list.get());
    }
  });
}

添加删除按钮

打开 /src/app/book/book.component.html 修改 ngbDropdownMenu 添加删除按钮

1
2
3
4
5
6
<div ngbDropdownMenu>
  <!-- add the Delete button -->
    <button ngbDropdownItem (click)="delete(row.id)">
        {{ '::Delete' | abpLocalization }}
    </button>
</div>

action

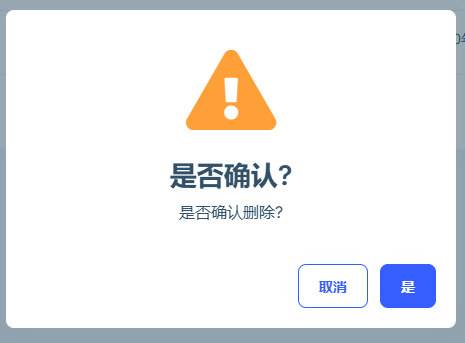

点击 delete 操作调用 delete 方法，然后显示一个确认弹层如下图所示：

confirm

至此就完成了对Book的增删改操作

下一节

教程下一节

Related Posts
